0251.500

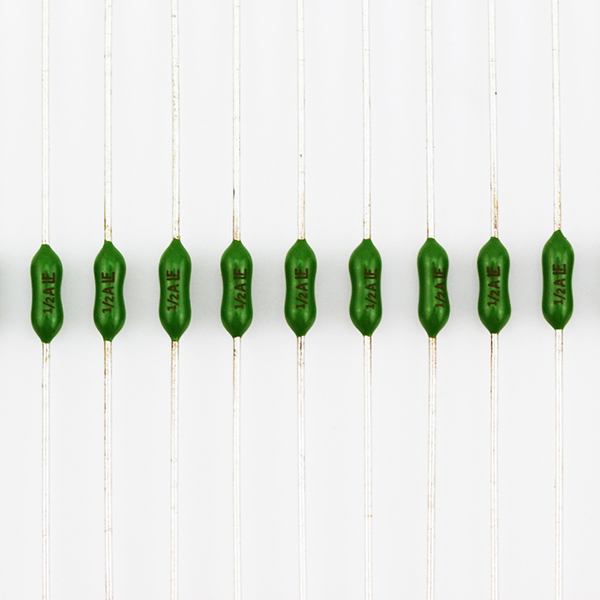

力特電阻式保險絲0251.500特快熔斷 尺寸小巧 寬額定電流范圍（62mA- 15A） 符合RoHS標準 可提供不含鹵素的型號 工作溫度范圍廣泛 低溫重新額定
| 型號 |
Ampere Rating (A) |
Amp Code |
Ordering Number (Std.) |
Ordering Number (Mil.) |
Max Voltage Rating |
Interrupting Rating |
Nominal Cold Resistance (Ohms) |
Nominal Melting I2t(A2sec) |
Nom Voltage Drop(V) |
Data Sheet |
|---|---|---|---|---|---|---|---|---|---|---|
| 0251004. | 4.00 | 004. | 251004. | 253004. | 125 | 300A@rated volage DC | 0.0204 | 2.45 | 0.114 |
 |
| 025103.5 | 3.50 | 03.5 | 25103.5 | 125 | 300A@rated volage DC | 0.0240 | 1.58 | 0.1205 |
|
|
| 0251003. | 3.00 | 003. | 251003. | 253003. | 125 | 300A@rated volage DC | 0.0290 | 1.19 | 0.131 |
|
| 025102.5 | 2.50 | 02.5 | 25102.5 | 125 | 300A@rated volage DC | 0.0360 | 0.721 | 0.132 |
|
|
| 02511.25 | 1.25 | 1.25 | 2511.25 | 125 | 300A@rated volage DC | 0.100 | 0.390 | 0.2 |
|
|
| 0251.750 | .750 | .750 | 251.750 | 253.750 | 125 | 300A@rated volage DC | 0.175 | 0.153 | 0.176 |
|
| 0251.375 | .375 | .375 | 251.375 | 253.375 | 125 | 300A@rated volage DC | 0.395 | 0.0296 | 0.215 |
|
| 0251.250 | .250 | .250 | 251.250 | 253.250 | 125 | 300A@rated volage DC | 0.665 | 0.0116 | 0.24 |
|
| 0251.125 | .125 | .125 | 251.125 | 253.125 | 125 | 300A@rated volage DC | 1.700 | 0.00174 | 0.285 |
|
| 0251.062 | .062 | .062 | 251.062 | 253.062 | 125 | 300A@rated volage DC | 7.000 | 0.000113 | 1.4 |
|
| 0251015. | 15.0 | 015. | 251015. | 253015. | 32 | 300A@rated volage DC | 0.00446 | 68.8 | 0.071 |
|
| 0251012. | 12.0 | 012. | 251012. | 32 | 300A@rated volage DC | 0.0055 | 45.2 | 0.0878 |
|
|
| 0251010. | 10.0 | 010. | 251010. | 253010. | 125 | 300A@rated volage DC | 0.00705 | 25.5 | 0.1 |
|
| 0251007. | 7.00 | 007. | 251007. | 253007. | 125 | 300A@rated volage DC | 0.0105 | 10.4 | 0.102 |
|
| 0251005. | 5.00 | 005. | 251005. | 253005. | 125 | 300A@rated volage DC | 0.0155 | 4.14 | 0.11 |
|
| 0251002. | 2.00 | 002. | 251002. | 253002. | 125 | 300A@rated volage DC | 0.0473 | 0.405 | 0.141 |
|
| 025101.5 | 1.50 | 01.5 | 25101.5 | 25301.5 | 125 | 300A@rated volage DC | 0.0823 | 0.587 | 0.21 |
|
| 0251001. | 1.00 | 001. | 251001. | 253001. | 125 | 300A@rated volage DC | 0.128 | 0.256 | 0.194 |
|
| 0251.630 | .630 | .630 | 251.630 | 125 | 300A@rated volage DC | 0.205 | 0.094 | 0.188 |
|
|
| 0251.500 | .500 | .050 | 251.500 | 253.500 | 125 | 300A@rated volage DC | 0.280 | 0.0598 | 0.2165 |
|
