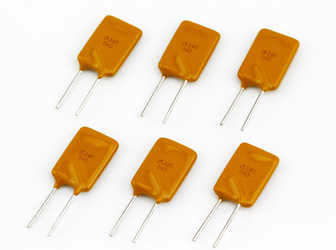

A240-040
集電通A240-040自恢復保險絲專為程控交換機、配線架設計生產的過保護器件，同時還可用于變壓器、安防設備、燈具、鎮流器、儀表、電話線路等領域。
| 型號 | Marking |
Ihold (A) |
Itrip (A) |
Vmax (V) |
Imax (A) |
Pdtyp. (W) |
Trip current (A) |
Trip time (S) |
Rimin (Ω) |
R1max (Ω) |
Data Sheet |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A240-005 | α240005 | 0.05 | 0.17 | 240 | 1.0 | 0.30 | 0.25 | 15.0 | 18.0 | 50.0 |
 |
| A240-008 | α240008 | 0.08 | 0.19 | 240 | 1.2 | 0.51 | 0.40 | 15.0 | 7.40 | 20.0 |
|
| A240-012 | α240012 | 0.12 | 0.30 | 240 | 1.2 | 0.60 | 0.60 | 15.0 | 3.00 | 12.0 |
|
| A240-016 | α240016 | 0.16 | 0.37 | 240 | 2.0 | 0.52 | 0.80 | 15.0 | 2.50 | 7.80 |
|
| A240-025 | α240025 | 0.25 | 0.56 | 240 | 3.5 | 0.52 | 1.25 | 18.5 | 1.30 | 4.00 |
|
| A240-033 | α240033 | 0.33 | 0.74 | 240 | 4.5 | 0.59 | 1.65 | 21.0 | 0.73 | 3.50 |
|
| A240-040 | α240040 | 0.40 | 0.90 | 240 | 5.5 | 0.66 | 2.00 | 24.0 | 0.60 | 2.50 |
|
| A240-055 | α240055 | 0.55 | 1.25 | 240 | 7.0 | 0.80 | 2.75 | 26.0 | 0.45 | 1.45 |
|
| A240-075 | α240075 | 0.75 | 1.50 | 240 | 7.5 | 0.90 | 3.75 | 14.0 | 0.32 | 1.10 |
|
| A240-100 | α240100 | 1.00 | 2.00 | 240 | 1.0 | 0.95 | 5.00 | 13.6 | 0.20 | 0.60 |
|
| A240-125 | α240125 | 1.25 | 2.50 | 240 | 12.5 | 1.00 | 6.25 | 18.0 | 0.12 | 0.32 |
|
| A240-135 | α240135 | 1.35 | 2.70 | 240 | 13.5 | 1.51 | 6.75 | 20.0 | 0.10 | 0.30 |
|
| A240-200 | α240200 | 2.00 | 4.20 | 240 | 20.0 | 1.71 | 10.0 | 36.0 | 0.089 | 0.22 |
|
